Wheel, Billet, 4"OD x 1"W (MK2/3) - Discontinued

Regular price $30.00

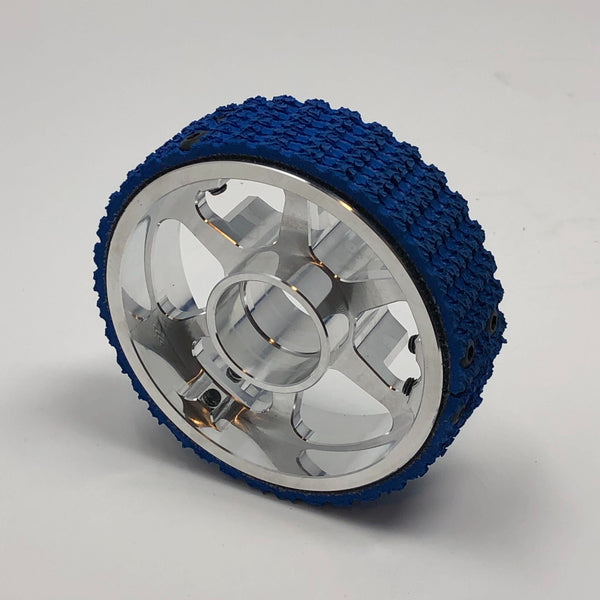

This 4 inch billet aluminum wheel is designed to be used with SDS swerve modules. It also works well as the outer wheels on the AndyMark AM14U4 kit of parts chassis. This wheel is made for 1 inch wide tread and has 4 pairs of 10-32 tapped holes to fasten the tread to the wheel.

Precut and drilled replacement treads are available for this wheel. For more details about replacement treads and about making your own tread please visit this page.

The following hardware is included:
  • Qty 8, 10-32 X 1/2" Button Head Screws for attaching tread
  • Qty 6, 10-32 X 1/2" Flat Head Screws for attaching a 60t bevel gear

While this wheel is designed for SDS swerve modules, it may also prove to be usefully for other drive trains that require 4 inch wheels with a 1.875" diameter 10-32 bolt circle.

Weight:

  • 0.28 Pounds (aluminum wheel only)
  • 0.42 Pounds (wheel with tread attached)

CAD:

Material:

  • Aluminum 6061 - T6
