This kit contains the components specific to the type of motor used with the MK4i Swerve Module. Example: Selecting the NEO option will enable you to convert a MK4i swerve module originally configured for Falcon 500 Motors to subsequently work with NEO Motors.
Please note the NEO Vortex kit is for NEO Vortex motors with the 8mm keyed shaft.

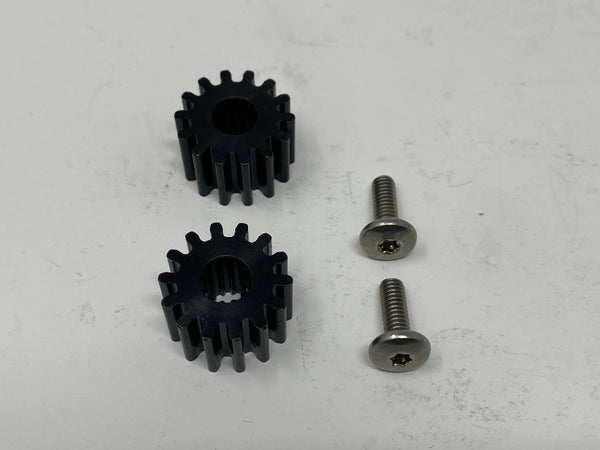

Falcon 500 Kit
- Gear, 20DP, 14T Falcon Spline Bore
- Drive Pinion Gear
- Steering Pinion Gear
- Quantity: 2
- Screw, 8-32 X 1/2 Torx Button
- Secures the Gears and Spacers to the Motor Shafts
- Quantity: 2

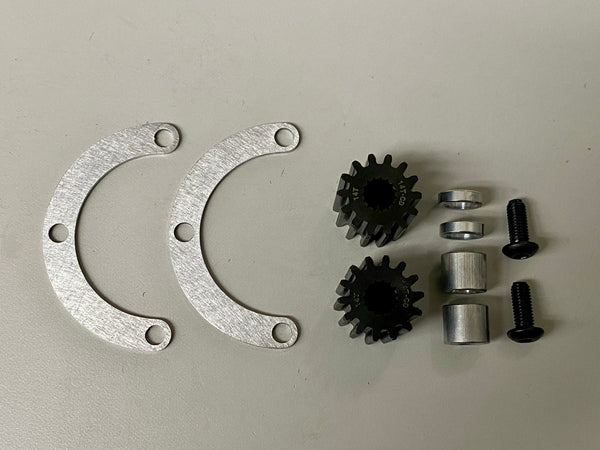

Kraken X60 Kit
- Gear, 20DP, 14T SplineXS Bore
- Drive Pinion Gear
- Steering Pinion Gear
- Quantity: 2
-
Screw, 10-32 X 1/2 Button
- Secures the Gears and Spacers to the Motor Shafts
- Quantity: 2
- Spacer, 0.315 x 0.438 x 0.125
- Goes below the Drive Pinion Gear on the Motor Shaft
- Goes above the Steering Pinion Gear on the Motor Shaft
- Quantity: 2
-
Spacer, 0.315 x 0.438 x 0.375
- Goes above the Drive Pinion Gear on the Motor Shaft
- Goes above the Steering Pinion Gear on the Motor Shaft
- Quantity: 2
- Spacer, Semicircle, 0.196 ID x 2.000 BC x 0.063 Th
- Goes between the Screw Spacers and Motors
- Quantity: 2

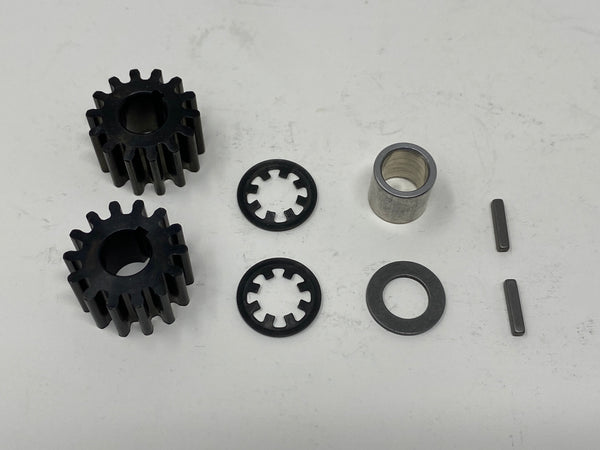

NEO Kit
- Gear, 20DP, 14T 8mm Bore
- Drive Pinion Gear
- Steering Pinion Gear
- Quantity: 2
- Key, Machine, 2mm x 2mm x 12mm
- For the Drive Pinion Gear
- For the Steering Pinion Gear
- Quantity: 2
- Ring, Retaining, External, Push-On, 8mm
- Retains the Drive Pinion Gear on the Motor Shaft
- Retains the Steering Pinion Gear on the Motor Shaft
- Quantity: 2
- Shim, 8mm x 14mm x 1mm
- Goes under the Steering Pinion Gear
- Quantity: 1
- Spacer, 0.315 x 0.438 x 0.438
- Goes below the Drive Pinion Gear on the Motor Shaft
- Quantity: 1
NEO Vortex Kit
- Gear, 20DP, 14T 8mm Bore
- Drive Pinion Gear
- Steering Pinion Gear
- Quantity: 2
- Key, Machine, 2mm x 2mm x 12mm
- For the Drive Pinion Gear
- For the Steering Pinion Gear
- Quantity: 2
- Ring, Retaining, External, Push-On, 8mm
- Retains the Drive Pinion Gear on the Motor Shaft
- Retains the Steering Pinion Gear on the Motor Shaft
- Quantity: 2
- Shim, 8mm x 14mm x 1mm
- Goes under the Steering Pinion Gear
- Quantity: 1
- Spacer, 0.315 x 0.438 x 0.438
- Goes below the Drive Pinion Gear on the Motor Shaft
- Quantity: 1
- Spacer, Semicircle, 0.196 ID x 2.000 BC x 0.063 Th
- Goes between the screw spacers and motors
- Quantity: 2
