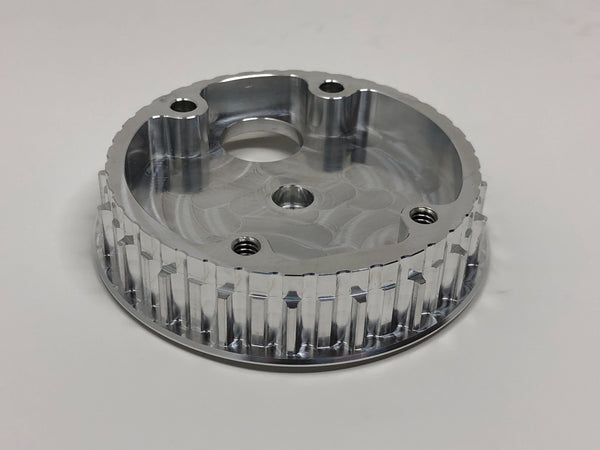

Base Pulley for use on the MK3 and MK4 swerve modules. Version differences:
- V1 (no longer available, but V2 is a drop-in replacement), for use with:
- 9mm wide timing belt
- V1 or V2 Intermediate Shaft
- FR6ZZ-10.25mmID bearing (bearing goes in the pulley and supports the top of the shaft)
- V2, for use with
- 9mm or 15mm wide timing belt
- V1 or V2 Intermediate Shaft
- FR6ZZ-10.25mmID bearing (bearing goes in the pulley and supports the top of the shaft). The bearing goes into a 0.875" thru-hole in the pulley.
- V3, for use with
- 9mm or 15mm wide timing belt
- V3 Intermediate Shaft
- 6802ZZ bearing (bearing goes in the pulley and supports the top of the shaft). The bearing goes into a stepped hole in the pulley.
Refer to the Intermediate Shaft product page for further details.
Weight: 0.21 Pounds
Material: 6061-T6 Aluminum
Finish: As Machined
