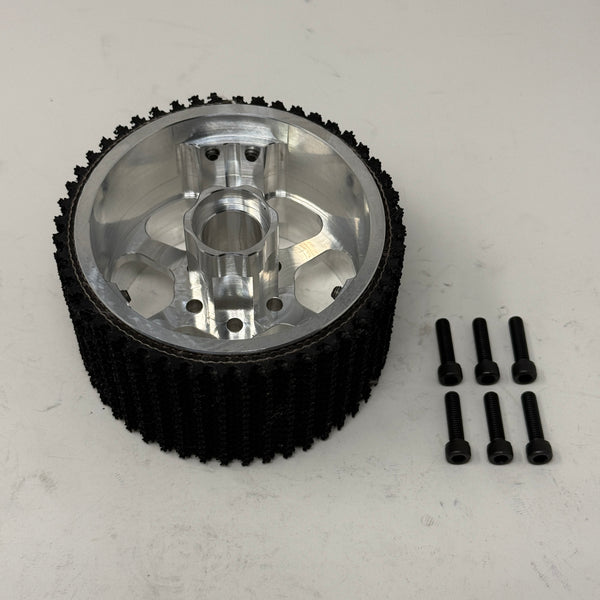

This billet aluminum wheel is designed to be used in the SDS MK5 family of swerve modules. This wheel is made for 2.25" wide tread and has four pairs of 10-32 tapped holes to fasten the tread to the wheel. Tread is preinstalled on the wheel.
Precut and drilled replacement treads are available for this wheel.
The following hardware is included:
- Qty 8, 10-32 x 1/2" Button Head Screws for attaching the tread
- Qty 6, 10-32 x 3/4" Socket Head Screws for attaching the 30T bevel gear

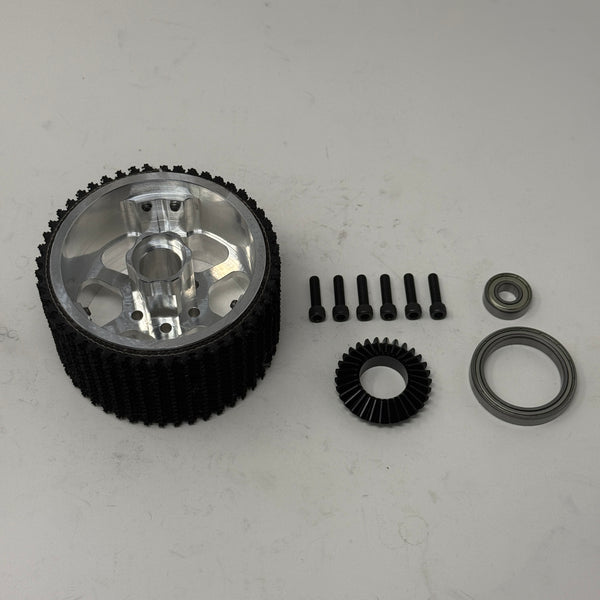

Including the optional Quick-Change Kit adds the following parts so you can have a ready-to-install wheel to quickly replace the tread on the robot
- 6807ZZ Bearing
- R6ZZ Bearing
- 30T Bevel Gear
Approximately weights:
- 0.42 pounds (aluminum wheel only)
- 0.68 pounds (wheel with tread attached)
- 0.74 pounds (wheel with tread attached + six screws for attaching the bevel gear)
- 0.94 pounds (wheel with tread attached + six screws for attaching the bevel gear + bevel gear)
Material:
- Aluminum 6061 - T6
