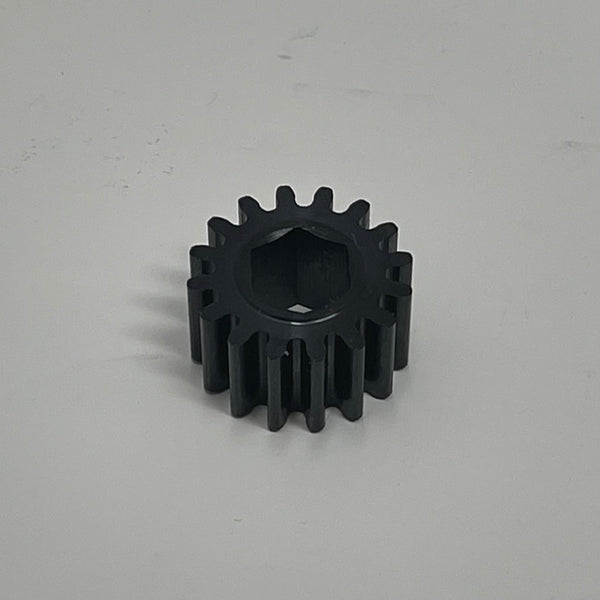

Gear, 20DP, 16T, 3/8" Hex Bore

Regular price $14.00

This 16T 20DP 3/8" Hex Gear is used for the:

  • MK3 Swerve Module with the Fast ratio (in conjunction with the 28T-48T double gear).
    This Fast ratio also requires a 16T pinion gear on the drive motor.
  • MK3 Swerve Module with the Standard gear ratio (in conjunction with the 28T-50T double gear).
    This Standard ratio also requires a 14T pinion gear on the drive motor.
  • MK4 Swerve Modules with the L4 gear ratio (in conjunction with the 28T-48T double gear).
    This L4 ratio also requires a 16T pinion gear on the drive motor.
  • MK4/4i Swerve Modules with the L3 gear ratio (in conjunction with the 28T-50T double gear).
    This L3 ratio also requires a 14T pinion gear on the drive motor.



Weight:

  • 0.05 pounds

Material:

  • 4140 Steel

Finish:

  • Black Oxide
