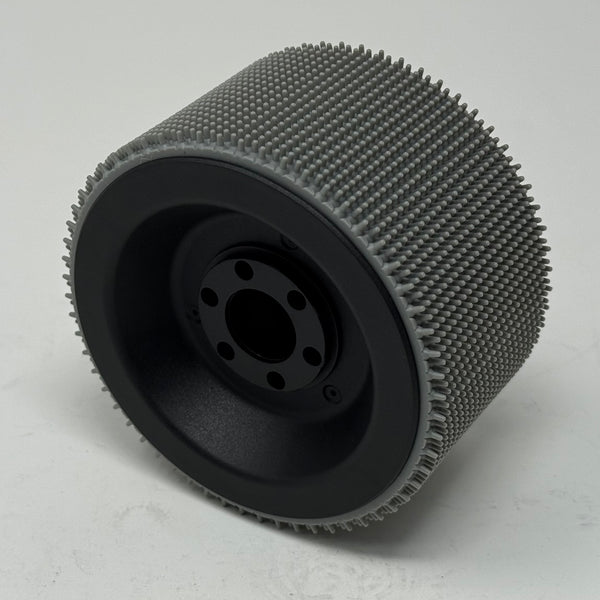

This Spike Grip wheel is designed to be used in the SDS MK5 family of swerve modules. This wheel uses 2.25" wide tread. Tread is preinstalled on the wheel.
Replacement treads are available for this wheel.

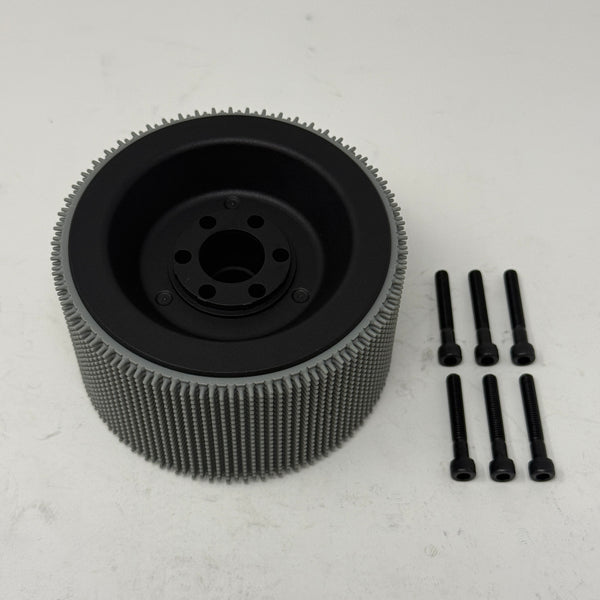

The following hardware is included
- Qty 6, 10-32 x 1.25" Socket Head Screws for attaching the 30T bevel gear

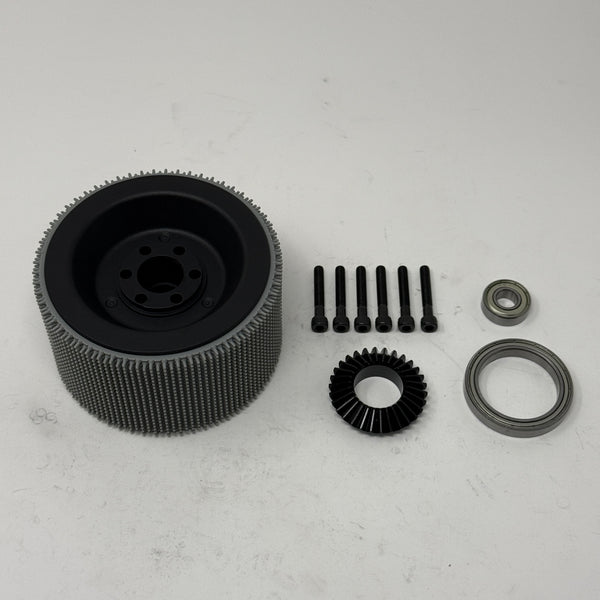

Including the optional Quick-Change Kit adds the following parts so you can have a ready-to-install wheel to quickly replace the tread on the robot
- 6807ZZ Bearing
- R6ZZ Bearing
- 30T Bevel Gear
Approximately weights:
- 0.40 pounds (plastic wheel only)
- 0.68 pounds (wheel with tread attached)
- 0.74 pounds (wheel with tread attached + six screws for attaching the bevel gear)
- 0.94 pounds (wheel with tread attached + six screws for attaching the bevel gear + bevel gear)
Material:
- Wheel: Glass-filled Nylon
- Tread: TPU
