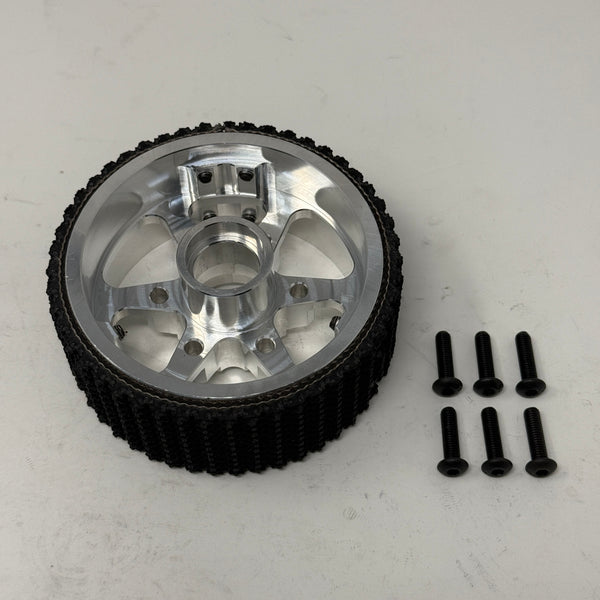

This billet aluminum wheel is designed to be used with SDS MK4 family swerve modules. This wheel is made for 1.5 inch wide tread and has 4 pairs of 10-32 tapped holes to fasten the tread to the wheel. Tread is preinstalled on the wheel.
Precut and drilled replacement treads are available for this wheel.
This wheel is designed to use one R8ZZ bearing and one R6ZZ bearing.
The following hardware is included
- Qty 8, 10-32 X 1/2" Button Head Screws for attaching tread
- Qty 6, 10-32 X 3/4" Button Head Screws for attaching a 45t bevel gear

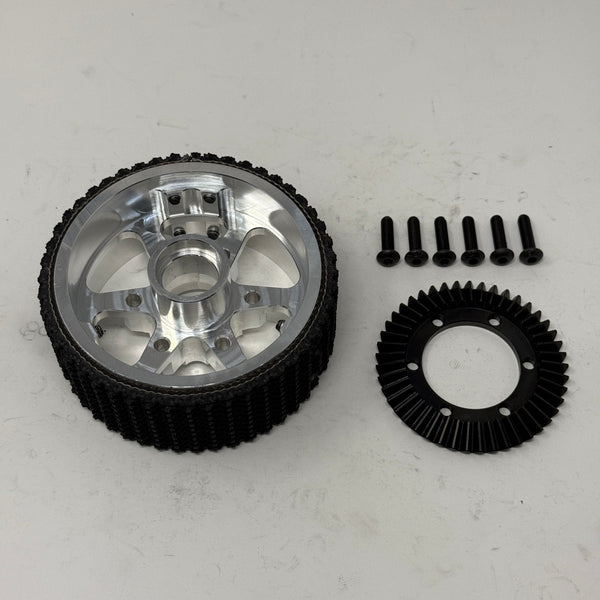

Including the optional Quick-Change Kit adds the 45T Bevel Gear so you can have a ready-to-install wheel to quickly replace the tread on the robot.
Weight:
- 0.55 pounds (wheel with tread attached + six screws for attaching the bevel gear)
- 0.73 pounds (wheel with hub + six screws for attaching the bevel gear + bevel gear)
CAD:
Material:
- Aluminum 6061 - T6
For extended wear life and simplified replacement, check out the Colson Wheel setup.
